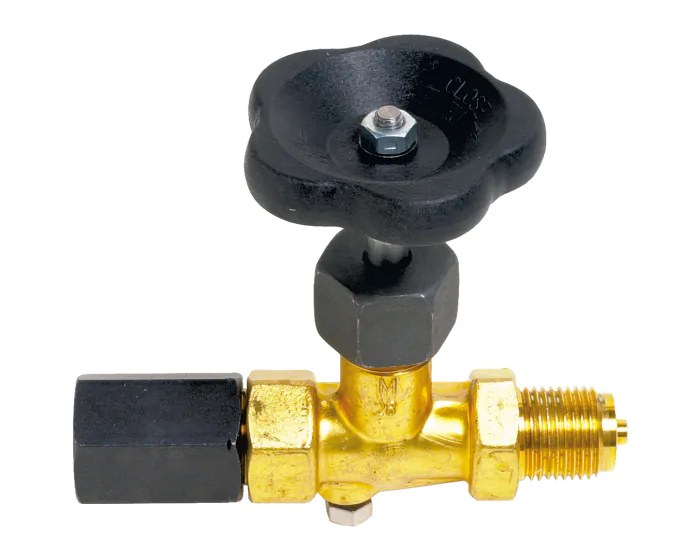

Syveco offers this high-pressure gauge valve 1390, male / female BSP with tension nut, DN 1/2'', PTFE gland, reduced bore and bleed screw for gases and non-viscous liquids
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Opening device | Handwheel |
| Face to Face (mm) | 119.0 |
| Fluid | Cold water |
| Body material | Brass CW617N |
| Bore | Reduced |
| PS (bar) | 250 |
| Connections | BSP MF |
| TS max (°C) | 90 |
| TS min (°C) | 0 |
| Warranty period | 2 years |
| Handle material | Nylon |
| In categories | Pressure gauges and separators |
If you have any questions about this product, please feel free to contact us.
